Technical Informations / Linear Expansion
Produced from PP-R Type-3 raw material, Composite pipes strechs in hot and contracts in cold due to its physical structure. Piping systems longer than 5 m must comply with expansion rules.

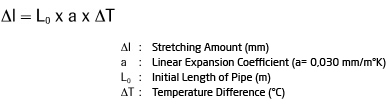

Linear expansion is calculated with below formulae:
| Pipe Length | Temperature Difference DT (°C) | |||||||
|---|---|---|---|---|---|---|---|---|
| L(m) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| 1,0 | 0,30 | 0,60 | 0,90 | 1,20 | 1,50 | 1,80 | 2,10 | 2,40 |
| 2,0 | 0,60 | 1,20 | 1,80 | 2,40 | 3,00 | 3,60 | 4,20 | 4,80 |
| 3,0 | 0,90 | 1,80 | 2,70 | 3,60 | 4,50 | 5,40 | 6,30 | 7,20 |
| 4,0 | 1,20 | 2,40 | 3,60 | 4,80 | 6,00 | 7,20 | 8,40 | 9,60 |
| 5,0 | 1,50 | 3,00 | 4,50 | 6,00 | 7,50 | 9,00 | 10,50 | 12,00 |
| 6,0 | 1,80 | 3,60 | 5,40 | 7,20 | 9,00 | 10,80 | 12,60 | 14,40 |
| 7,0 | 2,10 | 4,20 | 6,30 | 8,40 | 10,50 | 12,60 | 14,70 | 16,80 |
| 8,0 | 2,40 | 4,80 | 7,20 | 9,60 | 12,00 | 14,40 | 16,80 | 19,20 |
| 9,0 | 2,70 | 5,40 | 8,10 | 10,80 | 13,50 | 16,20 | 18,90 | 21,60 |
| 10,0 | 3,00 | 6,00 | 9,00 | 12,00 | 15,00 | 18,00 | 21,00 | 24,00 |
