GREEN ABSORBER-FEEDER HOSES
- Operating Temperature : -5°C / +60°C
- Bottom Layer : Elastic and soft PVC
- Top Layer : High impact resistance PVC
- Features : Internal surface is straight and smooth. Highly resistance against many chemicals.
- Application Areas : They are used in transmission and absorbance of any kind of water and various chemical substances.
Internal Diameter
|
Operation Pressure
|
Bursting Pressure
|
Weight
|
Pack
|
Length
|
inch
|
mm
|
1"
|
25
|
6 bar
|
18 bar
|
380 g/m
|
Coil
|
30 m
|
1 1/4"
|
32
|
6 bar
|
18 bar
|
520 g/m
|
Coil
|
30 m
|
1 1/2"
|
38
|
6 bar
|
15 bar
|
650 g/m
|
Coil
|
30 m
|
2"
|
50
|
5 bar
|
15 bar
|
1.100 g/m
|
Coil
|
24 m
|
21/2"
|
63
|
5 bar
|
12 bar
|
1.330 g/m
|
Coil
|
24 m
|
3"
|
75
|
5 bar
|
12 bar
|
1.800 g/m
|
Coil
|
24 m
|
4"
|
100
|
5 bar
|
10 bar
|
3.000 g/m
|
Coil
|
24 m
|

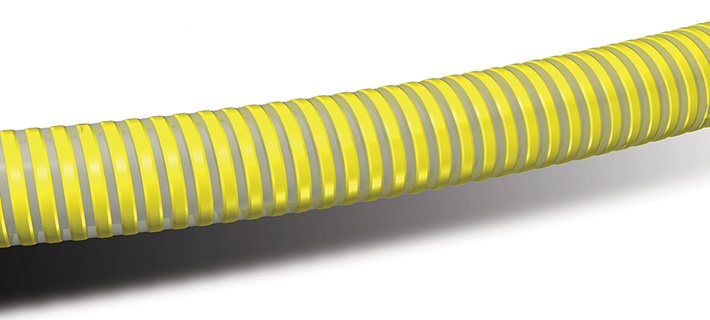

YELLOW ABSORBER-FEEDER HOSES
- Operating Temperature : -5°C / +60°C
- Bottom Layer : Elastic and soft PVC
- Top Layer : High impact resistance PVC
- Features : Internal surface is straight and smooth. Highly resistance against many chemicals.
- Application Areas : They are used in transmission and absorbance of any kind of water and various chemical substances.
Internal Diameter
|
Internal Diameter
|
Bursting Pressure
|
Weight
|
Pack
|
Length
|
inch
|
mm
|
1"
|
25
|
5 bar
|
15 bar
|
270 g/m
|
Coil
|
30 m
|
1 1/4"
|
32
|
5 bar
|
15 bar
|
360 g/m
|
Coil
|
30 m
|
1 1/2"
|
38
|
5 bar
|
15 bar
|
480 g/m
|
Coil
|
30 m
|
2"
|
50
|
4 bar
|
12 bar
|
820 g/m
|
Coil
|
24 m
|
21/2"
|
63
|
4 bar
|
10 bar
|
1.210 g/m
|
Coil
|
24 m
|
3"
|
75
|
4 bar
|
10 bar
|
1.460 g/m
|
Coil
|
24 m
|
4"
|
100
|
4 bar
|
10 bar
|
2.590 g/m
|
Coil
|
24 m
|

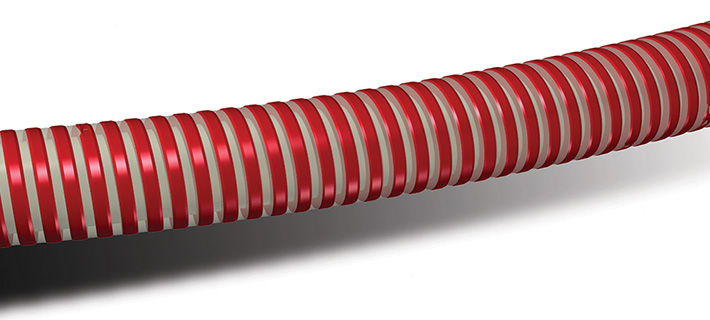

RED ABSORBER-FEEDER HOSES
- Operating Temperature : -5°C / +60°C
- Bottom Layer : Elastic and soft PVC
- Top Layer : High impact resistance PVC
- Features : Internal surface is straight and smooth. Highly resistance against many chemicals.
- Application Areas : They are used in transmission and absorbance of any kind of water and various chemical substances.
Internal Diameter
|
Internal Diameter
|
Bursting Pressure
|
Weight
|
Pack
|
Length
|
inch
|
mm
|
1"
|
25
|
4 bar
|
12 bar
|
250 g/m
|
Coil
|
30 m
|
1 1/4"
|
32
|
4 bar
|
12 bar
|
300 g/m
|
Coil
|
30 m
|
1 1/2"
|
38
|
4 bar
|
12 bar
|
460 g/m
|
Coil
|
30 m
|
2"
|
50
|
4 bar
|
10 bar
|
720 g/m
|
Coil
|
24 m
|
21/2"
|
63
|
4 bar
|
10 bar
|
1.180 g/m
|
Coil
|
24 m
|
3"
|
75
|
4 bar
|
10 bar
|
1.400 g/m
|
Coil
|
24 m
|
4"
|
100
|
4 bar
|
10 bar
|
2.250 g/m
|
Coil
|
24 m
|

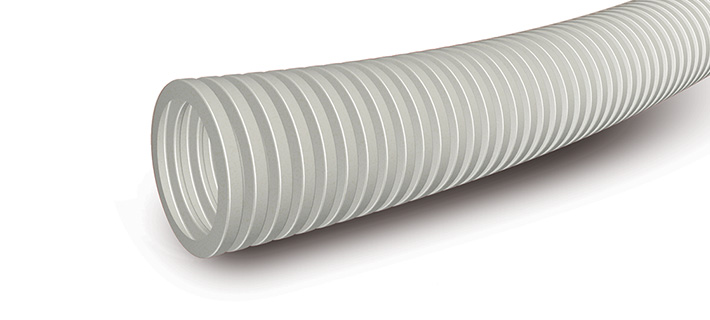

DUST-AIR FLEX ABSORBER HOSES
- Operating Temperature : -5°C / +60°C
- Bottom Layer : Elastic and soft PVC
- Top Layer : High impact resistance PVC
- Features : Internal surface is straight and smooth. Do not get affected from climate conditions.
- Application Areas : They are used in absorbing and discharging the any dust, fog and air from various places such as plants, construction, houses etc.
Internal Diameter
|
Weight
|
Pack
|
Length
|
inch
|
mm
|
4"
|
100
|
960 g/m
|
Coil
|
24 m
|
