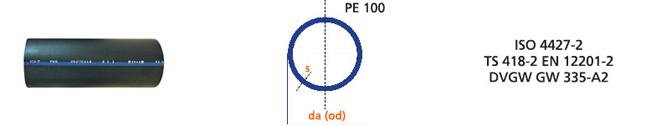

الأنابيب
da mm |
SDR 41 - PN 4 | SDR 33 - PN 5 | SDR 27.6 - PN 6 | SDR 21- PN 8 | SDR 17 - PN 10 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kodu | S mm |
Kg/m | Kodu | S mm |
Kg/m | Kodu | S mm |
Kg/m | Kodu | S mm |
Kg/m | Kodu | S mm |
Kg/m | |
20 | |||||||||||||||
25 | |||||||||||||||
32 | 7.500.180.032 | 2.0 | 0.187 | ||||||||||||
40 | 7.500.184.040 | 2.0 | 0.239 | 7.500.180.040 | 2.4 | 0.295 | |||||||||
50 | 7.500.186.050 | 2.0 | 0.314 | 7.500.184.050 | 2.4 | 0.359 | 7.500.180.050 | 3.0 | 0.453 | ||||||
63 | 7.500.186.063 | 2.3 | 0.444 | 7.500.184.063 | 3.0 | 0.565 | 7.500.180.063 | 3.8 | 0.721 | ||||||
75 | 7,500.186.075 | 2.7 | 0.625 | 7.500.184.075 | 3.6 | 0.807 | 7500.180.075 | 4.5 | 1.02 | ||||||
90 | 7.500.186.090 | 3.3 | 0.906 | 7.500.184.090 | 4.3 | 1.16 | 7.500.180.090 | 5.4 | 1.46 | ||||||
110 | 7.500.186.110 | 4.0 | 1.36 | 7.500.184.110 | 5.3 | 1.74 | 7.500.180.110 | 6.6 | 2.17 | ||||||
125 | 7.500.186.12S | 4.6 | 1.78 | 7.500.184.125 | 6.0 | 2.20 | 7.500.180.125 | 7.4 | 2.76 | ||||||
140 | 7.500.186.140 | 5.1 | 2.21 | 7.500.184.140 | 6.7 | 280 | 7.500.180.140 | 8.3 | 3.46 | ||||||
160 | 7.500.186.160 | 5.8 | 2.86 | 7.500.184.160 | 7.7 | 3.68 | 7.500.180.160 | 9.5 | 4.52 | ||||||
180 | 7.500.186.180 | 6.6 | 3.66 | 7.500.184.180 | 8.6 | 4.63 | 7.500.180.180 | 10.7 | 5.71 | ||||||
200 | 7.500.186200 | 7.3 | 4.50 | 7.500.184.200 | 9.6 | 5.73 | 7.500.180.200 | 11.9 | 7.05 | ||||||
225 | 7.500.186.225 | 8.2 | 5.68 | 7.500.184.225 | 10.8 | 7.26 | 7.500180 225 | 13.4 | 893 | ||||||
250 | 7.500.186.250 | 9.1 | 6.99 | 7.500.184.250 | 11.9 | 8.90 | 7 500.180.250 | 14.8 | 11.00 | ||||||
280 | 7.500.186.280 | 10.2 | 8.77 | 7.500.184.280 | 13.4 | 11.22 | 7.500.180.280 | 16.6 | 13.70 | ||||||
315 | 7.500.187.315 | 7.7 | 7.52 | 7.500.187.315 | 9.7 | 9.37 | 7.500.186.315 | 11.4 | 11.02 | 7.500.184.315 | 15.0 | 14.13 | 7.500.180.315 | 18.7 | 17.40 |
355 | 7.500.187.355 | 8.7 | 9.55 | 7.500.187.355 | 10.9 | 11.80 | 7.500.186.355 | 12.9 | 14.04 | 7.500.184.355 | 16.9 | 17.94 | 7.500.180.355 | 21.1 | 22.10 |
400 | 7.500.187.400 | 9.8 | 12.1 | 7.500.187.400 | 12.3 | 15.10 | 7.500.186.400 | 14.5 | 17.77 | 7.500.184.400 | 19.1 | 22.84 | 7.500.180.400 | 23.7 | 28.00 |
450 | 7.500.187.450 | 11.0 | 15.3 | 7.500.187.450 | 13.8 | 19.00 | 7.500.186.450 | 16.3 | 22.46 | 7.500.184.450 | 21.5 | 28.90 | 7.500.180.450 | 26.7 | 35.40 |
500 | 7.500.187.500 | 12.3 | 19.0 | 7.500.187.500 | 15.3 | 23.40 | 7.500.186.500 | 18.1 | 27.69 | 7.500.184.500 | 23.9 | 35.70 | 7.500.180.500 | 29.7 | 43.80 |
560 | 7.500.187.560 | 13.7 | 23.6 | 7.500.187.560 | 17.2 | 29.40 | 7.500.186.560 | 20.3 | 34.77 | 7.500.184.560 | 26.7 | 44.70 | 7.500.180.560 | 33.2 | 54.80 |
630 | 7.500.187.630 | 15.4 | 29.9 | 7.500.187.630 | 19.3 | 37.10 | 7.500.186.630 | 22.8 | 43.91 | 7.500.184.630 | 30.0 | 56.50 | 7.500.180.630 | 37.4 | 69.40 |
710 | 7.500.187.710 | 17.4 | 38.0 | 7.500.187.710 | 21.8 | 47.20 | 7.500.186.710 | 25.7 | 55.75 | 7.500.184.710 | 33.9 | 72.00 | 7.500.180.710 | 42.1 | 88 |
800 | 7.500.187.800 | 19.6 | 48.1 | 7.500.187.800 | 24.5 | 59.70 | 7.500.186.800 | 29.0 | 70.86 | 7.500.184.800 | 38.1 | 91.20 | 7.500.180.800 | 47.4 | 112 |
900 | 7.500.187.900 | 22.0 | 60.9 | 7.500.187.900 | 27.6 | 75.60 | 7.500.186.809 | 32.7 | 89 | 7.500.184.900 | 42.9 | 115 | 7.500.180.900 | 53.3 | 141 |
1000 | 7.500.187.910 | 24.5 | 75.2 | 7.500.187.910 | 30.6 | 93.10 | 7.500.186.810 | 36.3 | 110 | 7.500.184.910 | 47,7 | 143 | 7.500.180.910 | 59.3 | 175 |
1200 | 7.500.187.920 | 29.4 | 108 | 7.500.187.920 | 36.7 | 134 | 7.500.186.812 | 43.5 | 157 | 7.500.184.912 | 57.2 | 205 | 7.500.180.912 | ||
1400 | 7.500.187.940 | 34.4 | 147 | 7.500.187.940 | 42.9 | 183 | 7.500.186.940 | 50.8 | 215 | 7.500.184.914 | |||||
1600 | 7.500.187.960 | 39.2 | 192 | 7.500.187.960 | 49 | 238 | 7.500.186.960 | 58.0 | 281 | 7.500.184.916 |
