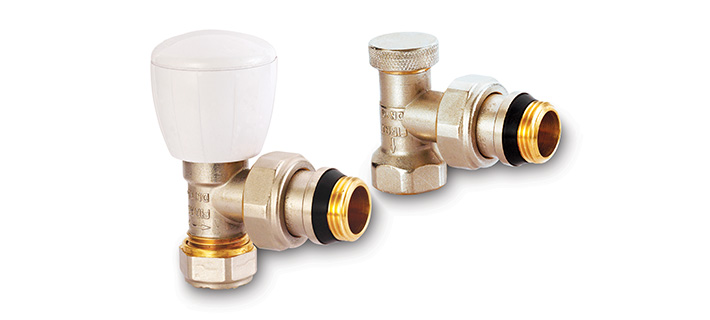

Radiator Valve Self Sealed (Angled)

Material Features
  • 1: Plastic Handwheel
  • 2: Brass Shaft Assembly
  • 3: EPDM O-Ring.
  • 4: Brass Body
  • 5: Brass Nut
  • 6: Brass Connection Nipple
  • 7: EPDM O-Ring
Application Areas
  • Hot and cold water systems.


Product Code No
Diameter Working L
mm
H1
mm
H2
mm
inch mm
  1/2" DN15 PN10 53.44 23 76.15

Radiator Valve Self Sealed (Angled) (PEX Pipe Connection)

Material Features
  • 1: Plastic Handwheel
  • 2: Brass Shaft Assembly
  • 3: EPDM O-Ring.
  • 4: Brass Body
  • 5: Brass Nut
  • 6: Brass Connection Nipple
  • 7: EPDM O-Ring
Application Areas
  • Hot and cold water systems.

Product Code No
Diameter Working L
mm
H1
mm
H2
mm
inch mm
  1/2" DN15 PN10 53.44 33 86.2

Radiator Valve Self Sealed (Angled) (Straight)

Material Features
  • 1: Plastic Handwheel
  • 2: Brass Shaft Assembly
  • 3: EPDM O-Ring.
  • 4: Brass Body
  • 5: Brass Nut
  • 6: Brass Connection Nipple
  • 7: EPDM O-Ring.
Application Areas
  • Hot and cold water systems.

Product Code No
Diameter Working L
mm
H1
mm
H2
mm
inch mm
  1/2" DN15 PN10 54.5 82 59,65

Radiator Lockshield Valve

Material Features
  • 1: Brass Lid
  • 2: Brass Closure Component
  • 3: EPDM O-Ring.
  • 4: Brass Body
  • 5: Brass Nut
  • 6: Brass Connection Nipple
Application Areas
  • Hot and cold water systems.

Product Code No
Diameter Working L
mm
H1
mm
H2
mm
inch mm
  1/2" DN15 PN10 56 26 50

Radiator Lockshield Valve Self Sealed

Material Features
  • 1: Brass Lid
  • 2: Brass closure component
  • 3: EPDM O-Ring.
  • 4: Brass Body
  • 5: Brass Nut
  • 6: Brass Connection Nipple
  • 7: EPDM O-Ring.
Application Areas
  • Hot and cold water systems.

Product Code No
Diameter Working L
mm
H1
mm
H2
mm
inch mm
7800110960 1/2" DN15 PN10 56 26 50
